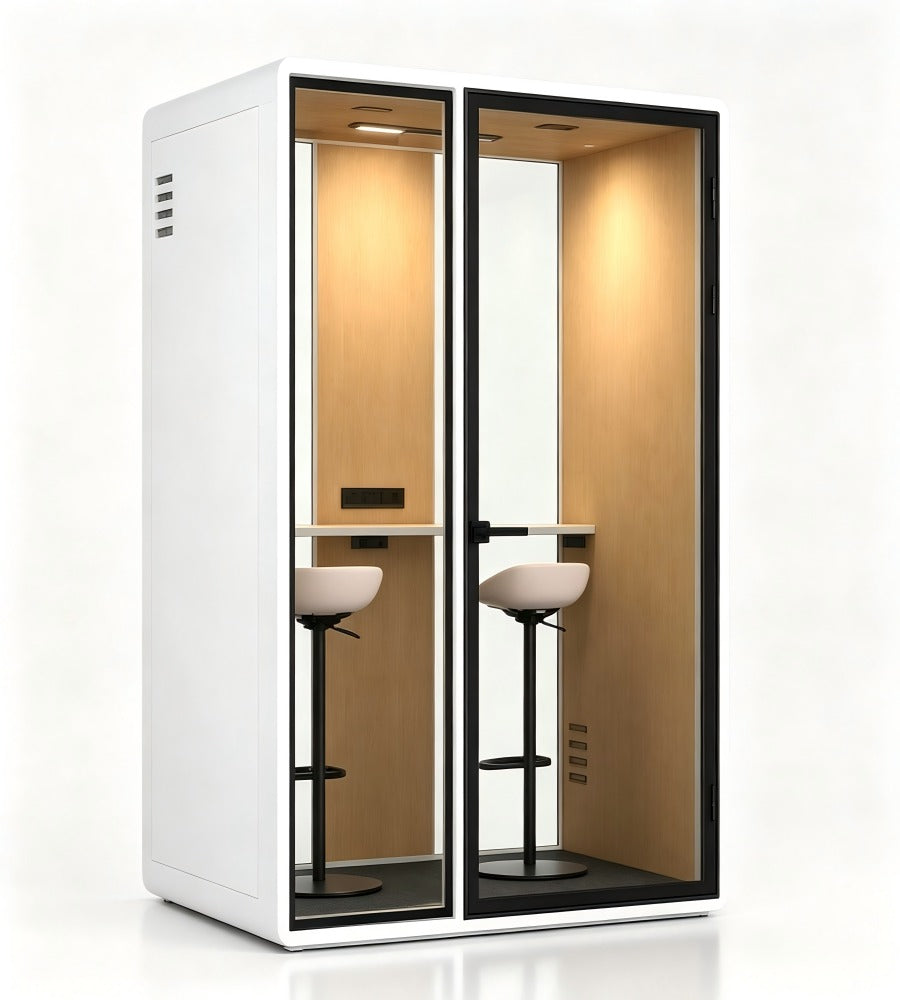

Two-Person Side-by-Side Quiet Pod

Product No.: PBD-SL-MS

HK$61,500

	尺寸	1600(W)x1000(D)x2250(H)(mm)
	材料飾面	1. Sound insulation parameters: Design values RW+Ctr30dB (±5dB) and RT0.25 (±0.1s), sound insulation class NIC=32; 2. Cabin frame material: The soundproof cabin uses 6063-T5 refined aluminum alloy on all sides, with a wall thickness of 3~5mm. It is electrostatically sprayed with high-quality hydrogen plastic powder, which is environmentally friendly, non-toxic, and odorless; 3. Cabin panel material: 50mm double-layer soundproof composite steel plate, internally compounded with multiple soundproof materials + 55kg polyester sound-absorbing cotton, achieving acoustic environment indicators. The exterior steel plate surface is electrostatically sprayed with high-quality hydrogen plastic powder; 4. Cabin glass material: 6mm+1.14pvd+4mm asymmetrical laminated high-speed rail plain white soundproof glass, certified by national 3C safety certification; 5. Cabin interior finish: 12mm high-density environmental protection polyester fiber sound-absorbing board, zero formaldehyde release, inspected according to EN15012: 2007+A1:2001 and EN12149:1997 standards; 6. Cabin floor material: 5mm environmental protection nylon carpet + 50mm double-sided steel plate internally filled with flame-retardant composite sound insulation material; 7. Door system configuration: 6mm+1.14pvd+4mm asymmetrical laminated high-speed rail plain white soundproof glass door, silent door lock; 8. Environmental certification: Complies with GB/T18883-2002 indoor air quality standard SGS; 9. Smart lighting: Smart sensor lighting system (default automatic, optional manual), LED light source 5000k with built-in constant current drive high-brightness crystal chip, high-quality durable lamp beads, highly transparent Levia acrylic anti-glare mask, natural and soft light that is not dazzling; 10. Silent ventilation system: Smart sensor exhaust, automatic ventilation, micro-positive pressure circulating air design; 11. Universal modular socket: Universal plug with USB TYPE-C interface; 12. Acoustic design: Sound insulation + buffering + vibration reduction + sound absorption acoustic design structure, multi-channel sound barrier attenuates noise; 13. Environmental design: All components are environmentally friendly materials, zero formaldehyde release, environmentally friendly, non-toxic, and odorless; 14. Space design: Golden ratio design, ergonomic, making people feel no sense of spatial oppression; 15. Sound effect design: Multi-channel sound barrier attenuates noise, completely eliminating reverberation and humming in the space; 16. Expansion design: Standard modular design, allowing for infinite expansion of space to meet different spatial needs; 17. Portable design: Hidden pulley device at the bottom of the cabin, allowing the space to be moved to any position as needed; 18. Installation method: Modular installation, reusable. The outer frame connection uses steel-aluminum composite fasteners, and the cabin panel assembly is linked to the outer frame, improving efficiency by pre-drilling for on-site reinforcement, rejecting glue and nail gun structural configuration schemes. 19. Application scenarios: Consulting rooms, interview rooms, counseling rooms, reading rooms
	預算出貨時間	26-40 days

# 預算時間已包含送貨時間

Enjoy a one-time furniture delivery and installation service for orders over HK$12,000.

Product Introduction

The two-person side-by-side silent communication booth is built with cutting-edge acoustic technology, achieving excellent sound insulation performance of RW+Ctr30dB (±5dB) and RT0.25s (±0.1s), with an NIC as high as 32. With 50mm double-layer composite steel plates, multiple sound insulation materials, and high-speed rail white laminated soundproof glass, combined with a multi-channel sound barrier design, it completely eliminates echoes and external interference, creating an absolutely private communication environment for you.

The booth body is meticulously crafted with a 6063-T5 refined aluminum alloy frame, complemented by thick 50mm double-layer soundproof composite steel plates, electrostatically sprayed with high-quality environmental hydrogen plastic powder, which is non-toxic and odorless. All components are made of environmentally friendly materials, with zero formaldehyde release, and comply with the GB/T18883-2002 indoor air quality standard SGS certification, ensuring you enjoy a high-end experience in a healthy and worry-free space.

Built-in intelligent sensor lighting and micro-positive pressure circulating ventilation system ensure soft and natural light and fresh and circulating air inside the booth. The design also incorporates the golden ratio ergonomics to eliminate feelings of spatial confinement and is equipped with a modular universal socket with USB Type-C interface, as well as hidden casters and a modular expansion design, perfectly balancing convenience, comfort, and future flexible configuration.
